Tension Membrane Sail (Quad)

This product can't be ordered online.
Contact us to order it.

Description:

The Flexshade® Quad

A Contemporary Architectural Sail

A modern blend of art and architectural form. Available in either straight or curved columns with custom sizes to suit any application the The Flexshade® Quad can be linked to form diverse configurations. These robust, wind rated tension membrane sails are custom made and built to last.

  • Tensioned PVC fully welded membranes
  • Zinc & powder coated steel frames
  • Marine grade stainless cables & fittings
  • Engineered for winds up to 145 km/h
  • Fire rated PVC with PVDF top finish
  • Certified engineered non retractable design


10 Year Fabric Warranty

10 Year Frame Warranty


Features

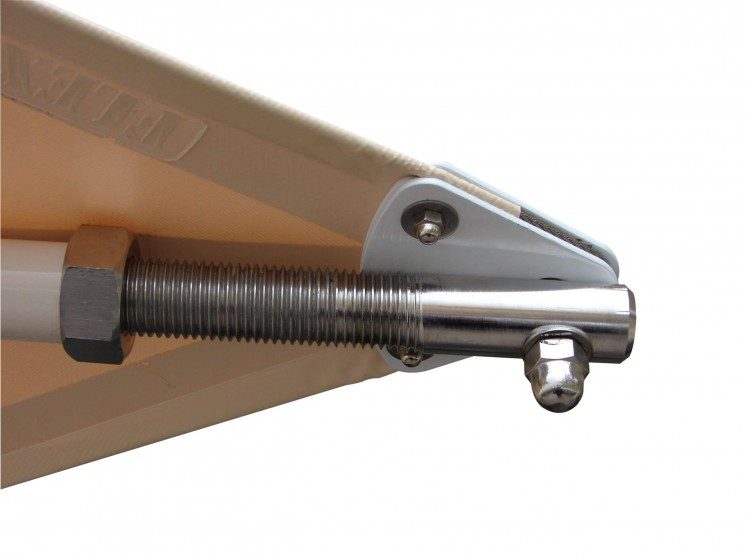

Stainless Steel Tension Adjuster

Stainless Steel Tension Adjuster

Maintains tension in membrane for years to come

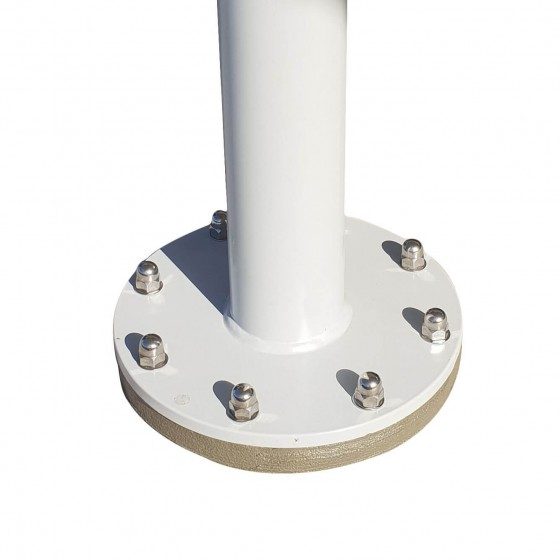

Structural Base Plate

Structural Base Plate

Heavy duty base plate permanently anchored to foundation

Canopy Colour Options

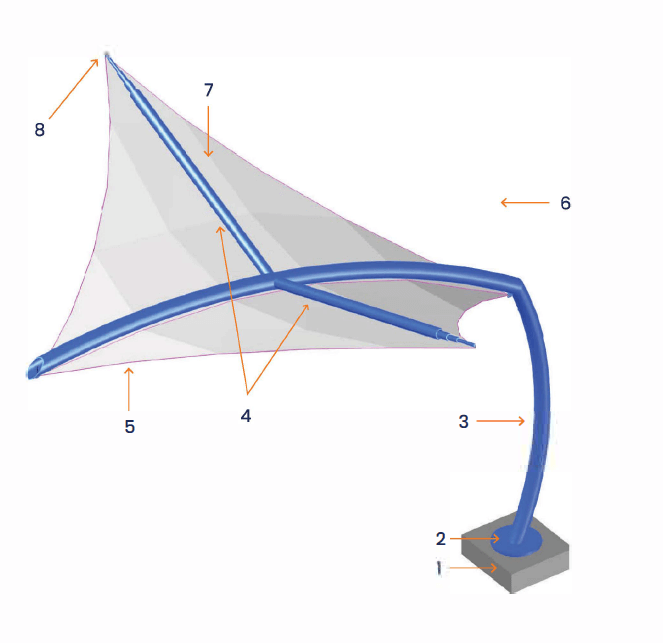

Configuration

Flexshade Quad Dimensions Graphic

1. Footings - To suit local conditions
2. Baseplate
3. Column
- Zinc & Powder Coated
4. Upper Struts - Zinc & Powder Coated

5. Edge Cable - Stainless Steel Fittings
6. Wind Load
- 41 m/sec
7. Membrane - Fire Rated PVC with PVDF Top Finish
8.  Tension Membrane Adjuster - Stainless Steel

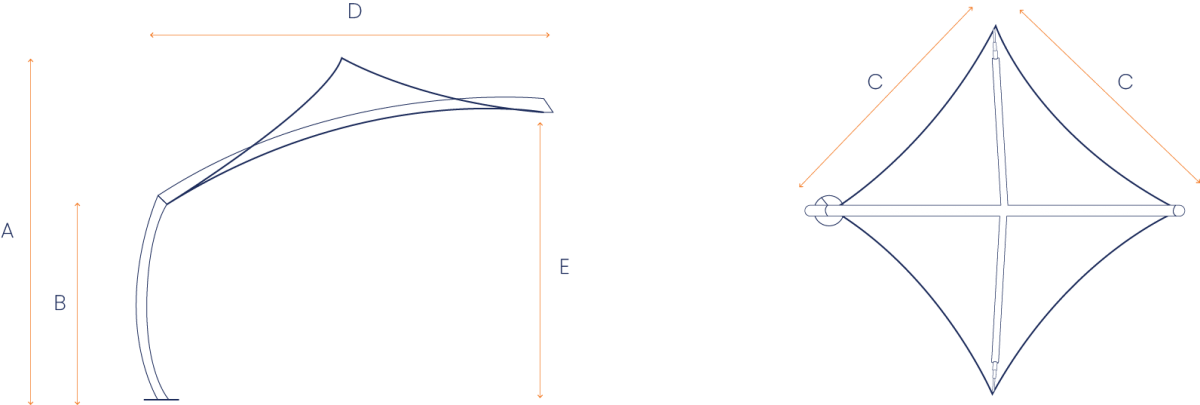

Dimensions


Size A B C D E
2.0m 3425 2100 2000 2000 2000
3.0m 3573 2100 3000 3000 2000
4.0m 4200 2490 4000 5560 3705

Options



Frame Colour

Choose from the full range of Dulux RAL powder coat colours for frame.


Stainless Steel Frame

Electropolished stainless steel frames are available.
Call for price on application.



Provision for Electrical

Provision for Electrical Lighting,  Heating Units, fan, televisions and more.


Column Style

Available with straight or curved columns.


Link Multiple Quads

The Quad can be linked in a variety of layouts and provide full weatherproof coverage using infill panels

About the Manufacturer

The Flexshade® range of pre-engineered tension membrane structures are part of the Vesl Tension Span Group founded in 1977. These Australian made shade structures are built to unmatched standards and are designed with a fix and forget philosophy.

Brochure Download

For more information download our brochure.

Brochure Brochure


Or contact Project Shade to speak with a shade specialist.
