Flexshade Tetra

This product can't be ordered online.
Contact us to order it.

Description:

The Flexshade® Tetra

An Architecturally Designed Shade Structure

Engineered to stand the test of time, the Tetra is a durable alternative to typical shade sails. The design features a conical shaped membrane with four corner columns to allow for its large coverage. The Tetra is available with curved or square perimeter edges and can be linked together or to existing buildings. Popular with swimming pools, sporting clubs and schools, they provide a lifetime of low maintenance.

  • Certified engineered non retractable design
  • Tensioned PVC fully welded membranes
  • Zinc & powder coated steel frames
  • Marine grade stainless cables & fittings
  • Engineered for winds up to 160 km/h
  • Fire rated PVC with PVDF top finish
  • Complete internal water drainage


10 Year Fabric Warranty

10 Year Frame Warranty



Features

Stainless Steel Tension Adjuster

Maintains tension in membrane for years to come

Structural Base Plate

Heavy duty base plate permanently anchored to foundation

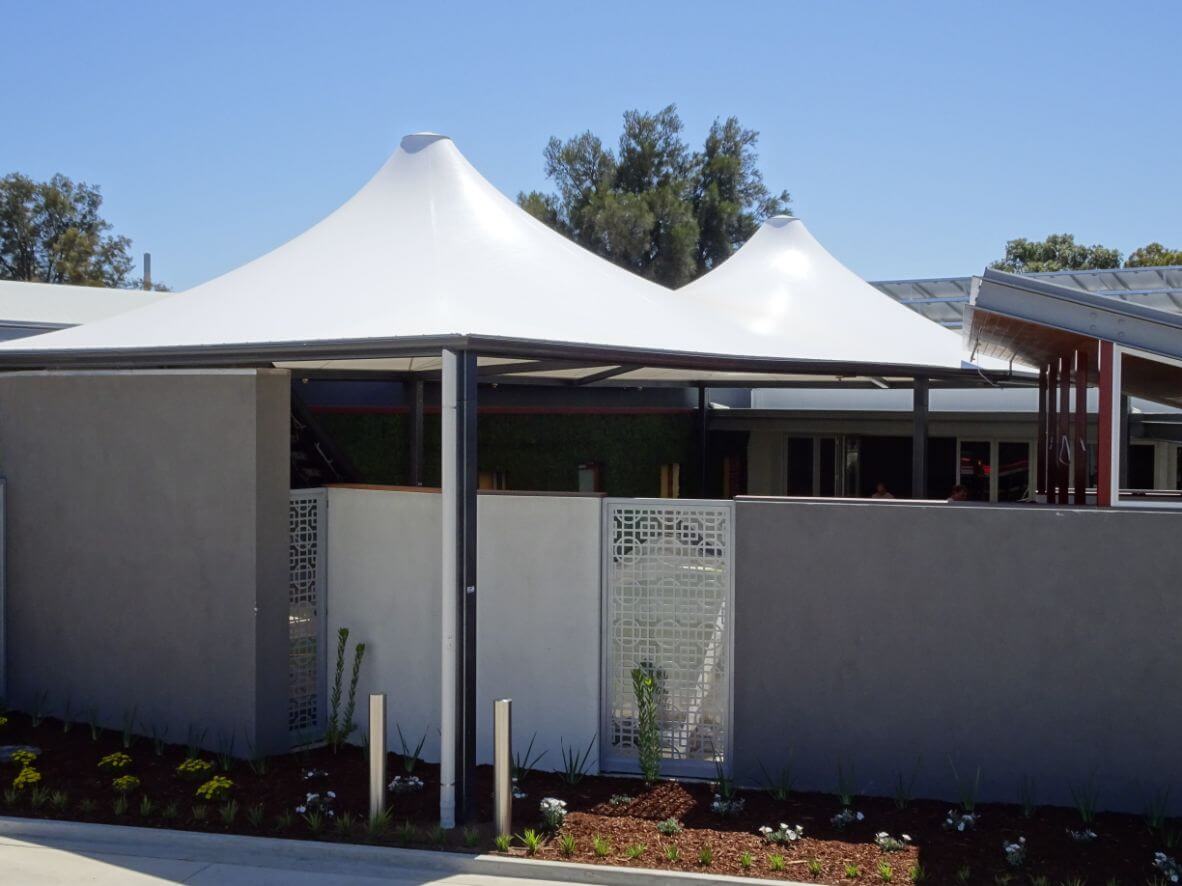

Tetra Twin (Optional)

Duel structures joined together for double the coverage




Canopy Colour Options




Configuration

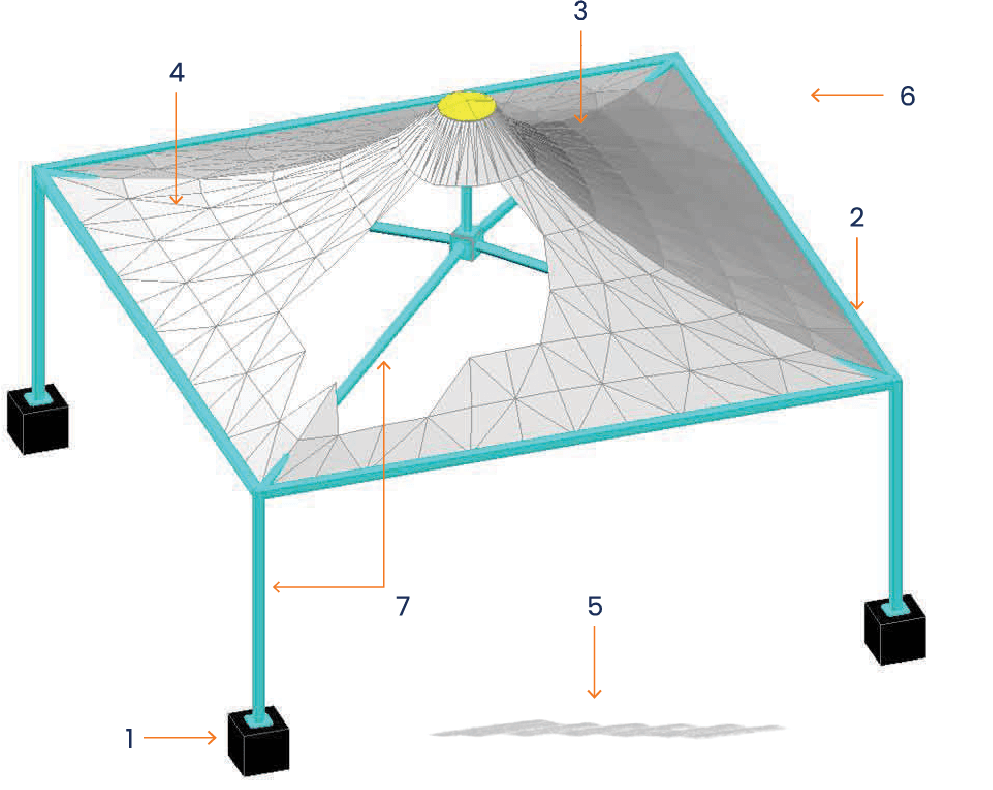

Flexshade Tetra Dimensions Graphic

1. Footings - To suit local conditions
2. Point Load - kN (225 lbf)
3. Apex Cap - Powder Coated Aluminium
4. Membrane - Fire Roted PVC with PVDF Top Finish

5. Ground Snow load - 0.95 kPo (20 psf)
6. Wind Load - 45m/sec
7. Column, Rafters - Zinc & Powder Coated

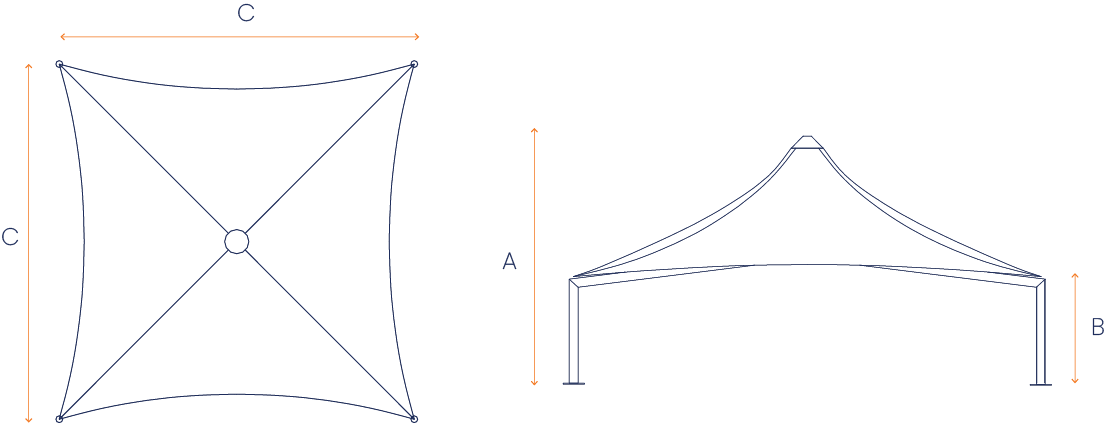

Dimensions


Size A B C
5.0m (Cable Edge) 3994 2400 5000
8.8m (Cable Edge) 5175 2500 8815
7.0m (Straight Edge) 4500 2500 7000
6.0m (Straight Edge) 4400 2500 6000
5.0m (Straight Edge) 4000 2500 5000
4.0m (Straight Edge) 3765 2500 4000

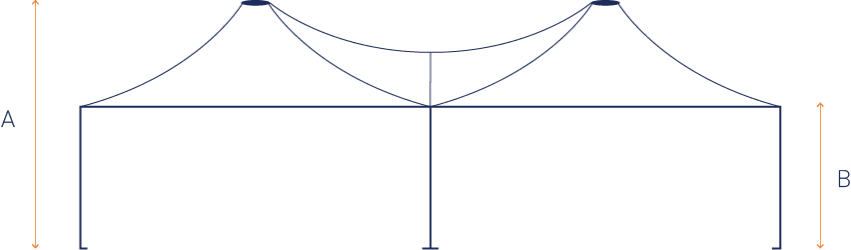

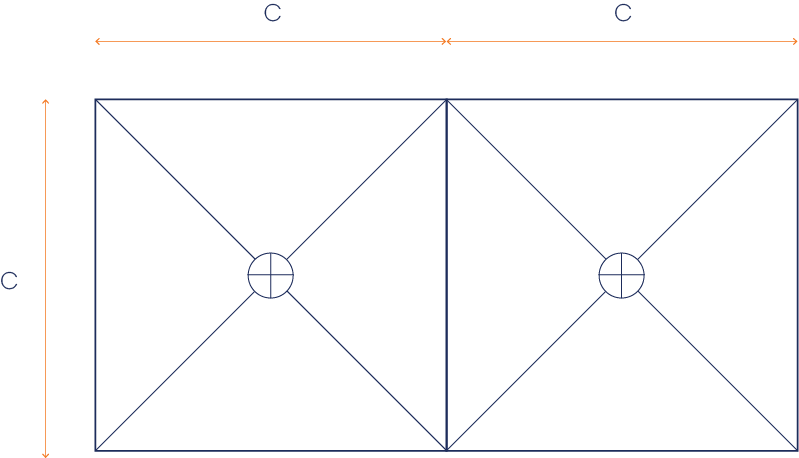

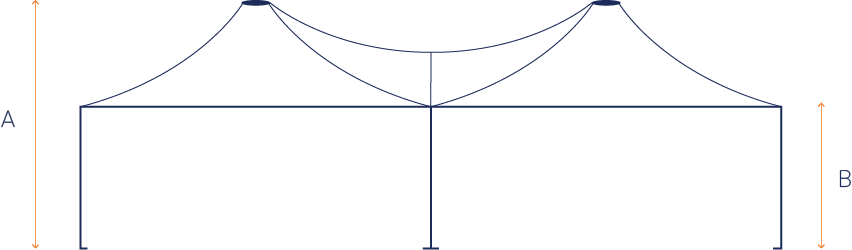

Tetra Twin



Options



Frame Colour

Choose from the full range of Dulux RAL powder coat colours for frame.


Stainless Steel Frame

Electropolished stainless steel frames are available.
Call for price on application.



Provision for Electrical

Provision for Electrical Lighting,  Heating Units, fan, televisions and more.


Provision for Side Curtain

Provision for side curtains and optional corner posts for roll up or zip track fittings for complete weather protection.

About the Manufacturer

The Flexshade® range of pre-engineered tension membrane structures are part of the Vesl Tension Span Group founded in 1977. These Australian made shade structures are built to unmatched standards and are designed with a fix and forget philosophy.

Brochure Download

For more information download our brochure.

Brochure Brochure


Or contact Project Shade to speak with a shade specialist.
