The Hypar

This product can't be ordered online.
Contact us to order it.

Description:

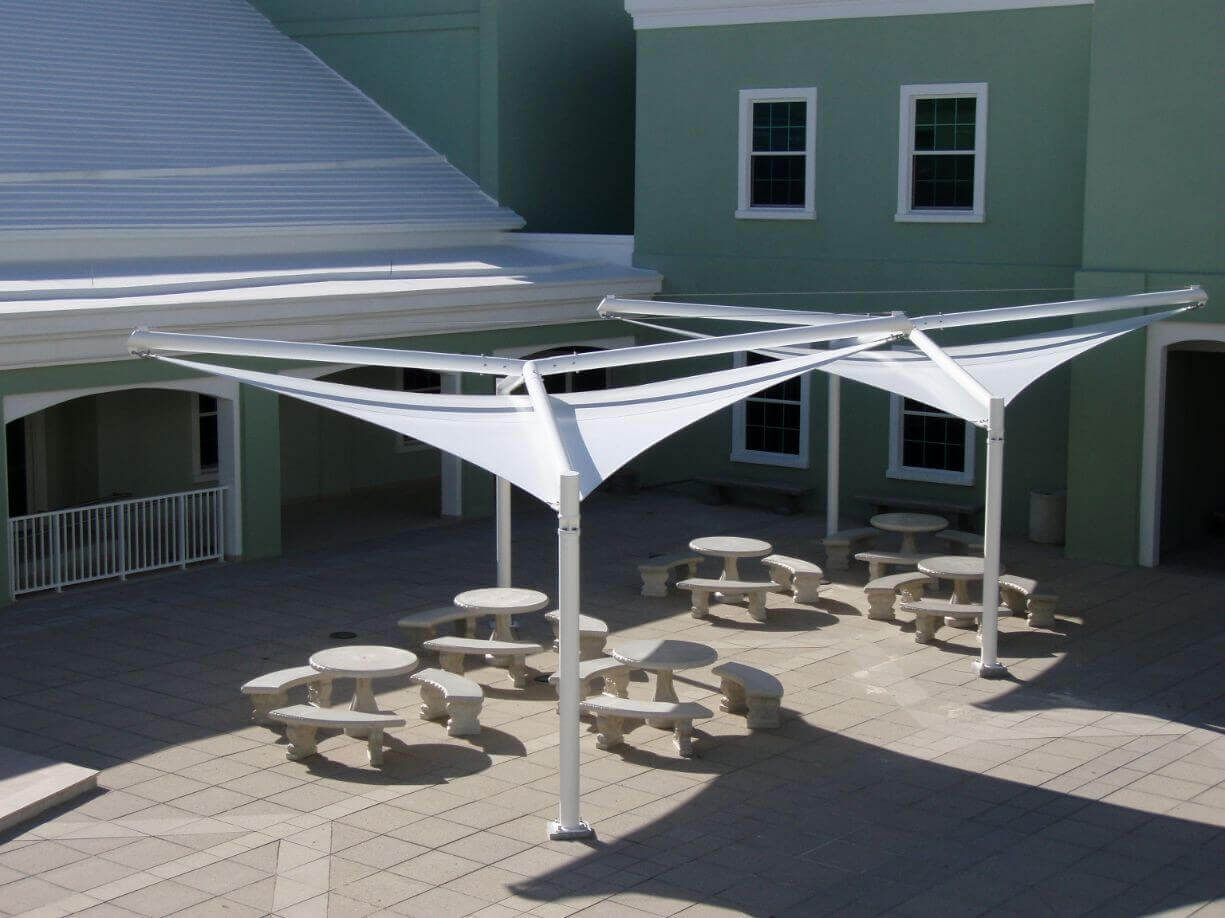

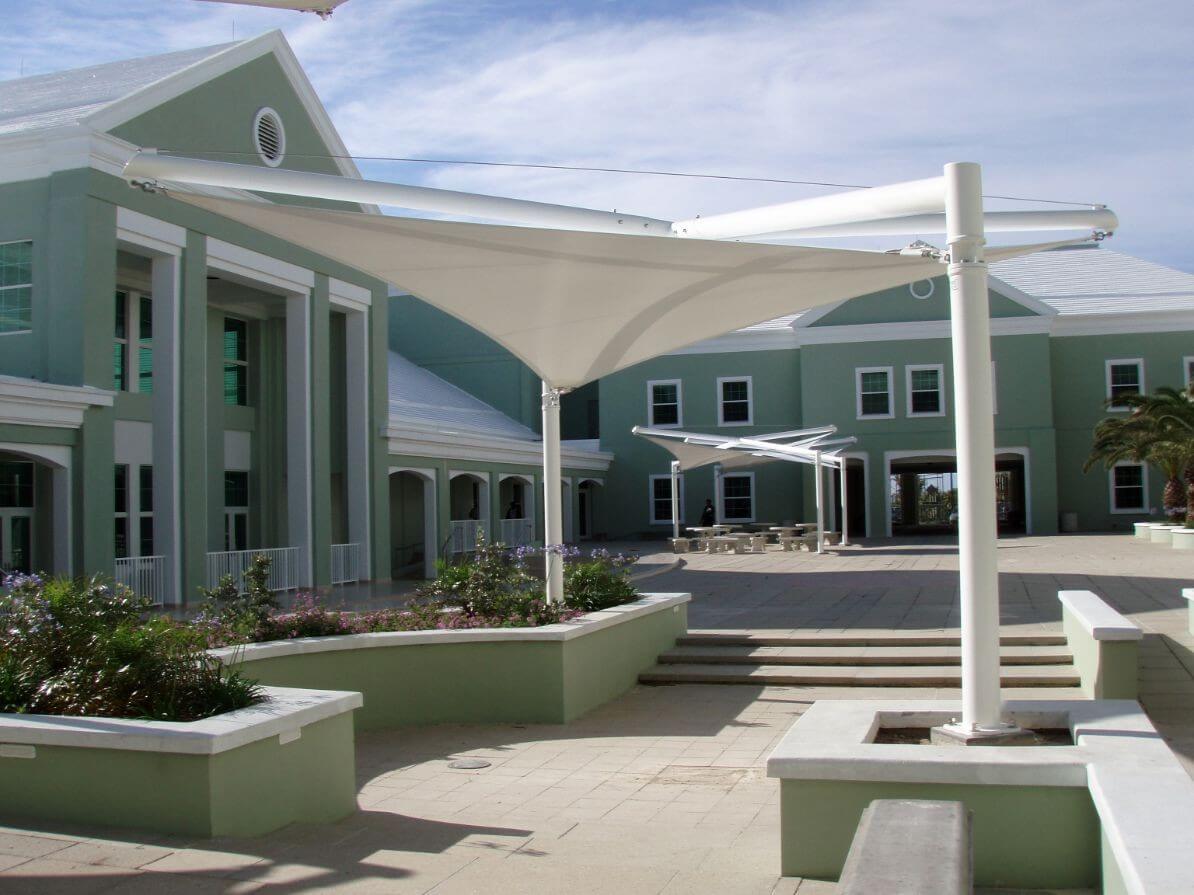

The Flexshade® Hypar

An Architecturally Designed Shade Structure

A durable, contemporary alternative to traditional shade sails. The unique design features a twisted tension membrane with overhead support structure. Modules can be linked together in a variety of plan layouts for optimal shade coverage. These engineered structures are custom made and built to last.


  • Certified engineered non retractable design
  • Tensioned PVC fully welded membranes
  • Zinc & powder coated steel frames
  • Marine grade stainless cables & fittings
  • Engineered for winds up to 160km/h
  • Fire rated PVC with PVDF top finish
  • Complete internal water drainage


10 Year Fabric Warranty

10 Year Frame Warranty


Features

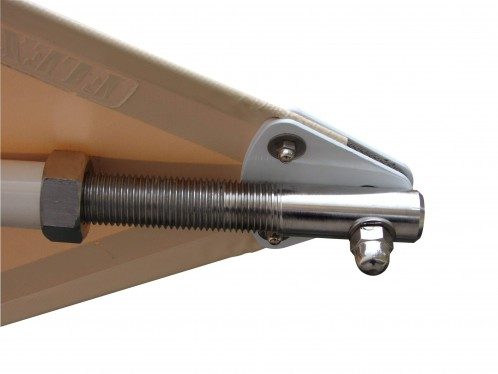

Stainless Steel Tension Adjuster

Maintains tension in membrane for years to come

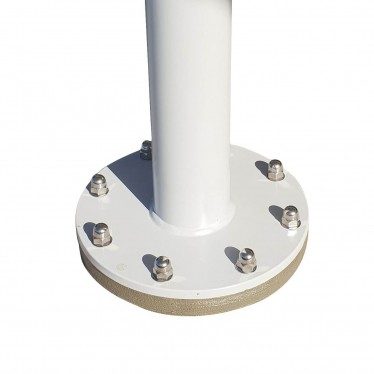

Structural Base Plate

Heavy duty base plate permanently anchored to foundation

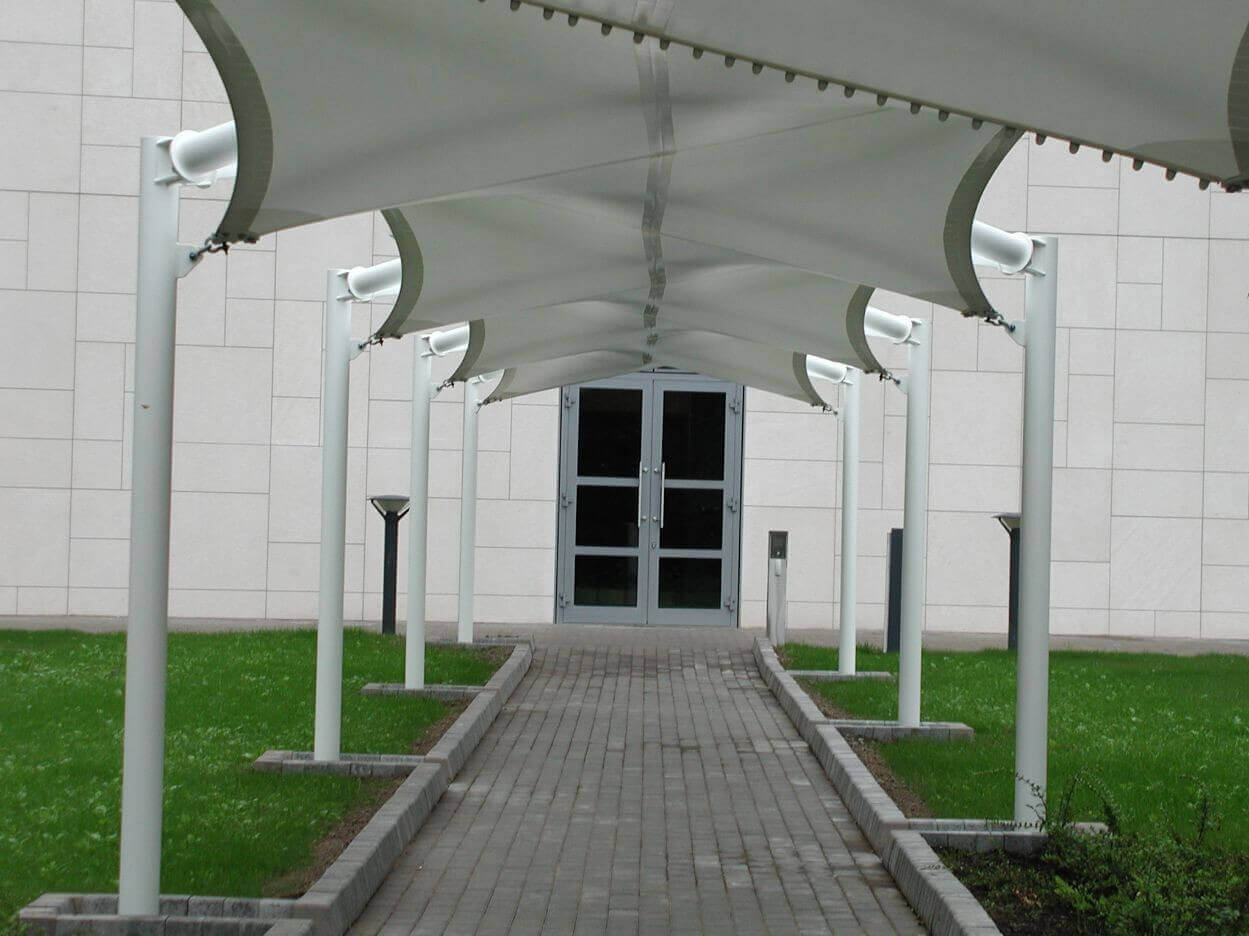

Hypar Links (Optional)

Connect multiple modules together for to provide weatherproof cover

Canopy Colour Options

Configuration

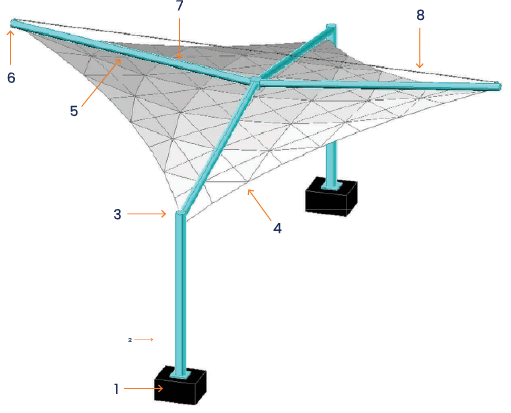

Flexshade Hypar Configuration Graphic

1. Footings - To suit local conditions
2. Column - Zinc & Powder Coated
3. Bolted Joints - Jigh Strength GR8.8 /S Bolts
4. Edge Cable - Stainless Steel Fittings
5. Rafter Struts - Zinc & Powder Coated

6. Tensioner - Stainless Steel
7. Membrane - Fire Rated PVC with PVDF Top Finish
8. Guy Cable
- Stainless Steel
9. Wind Load - 41 m/sec

Dimensions

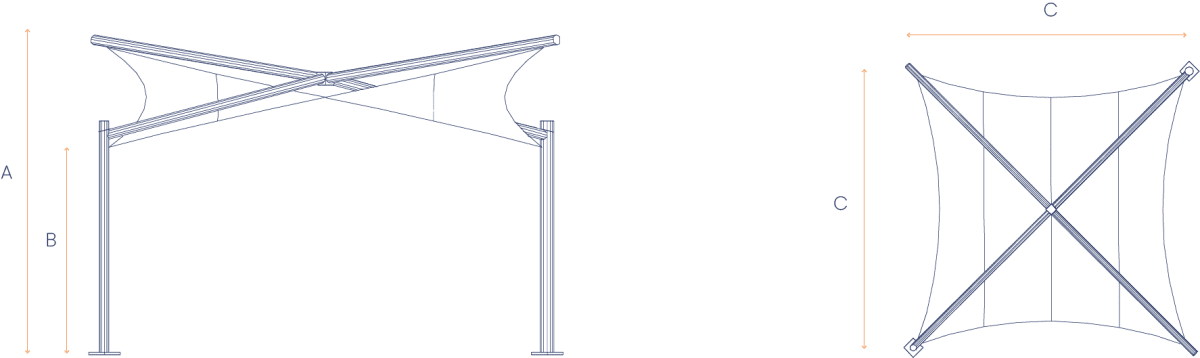

Flexshade Hypar Dimensions Graphic


Size A B C
2.9m 3128 2500 2900
4.3m 3450 2500 4330
5.7m 3771 2500 5760
6.6m 4090 2500 7160

Options



Frame Colour

Choose from the full range of Dulux RAL powder coat colours for frame.


Stainless Steel Frame

Electropolished stainless steel frames are available.
Call for price on application.


Provision for Electrical

Provision for Electrical Lighting,  Heating Units, fan, televisions and more.

About the Manufacturer

The Flexshade® range of pre-engineered tension membrane structures are part of the Vesl Tension Span Group founded in 1977. These Australian made shade structures are built to unmatched standards and are designed with a fix and forget philosophy.

Brochure Download

For more information download our brochure.

Brochure Brochure


Or contact Project Shade to speak with a shade specialist.
